Project: Building a Zero Trust Identity Architecture in Azure

In the world of Cloud Engineering, clicking "Create User" is easy. But designing a secure, scalable identity system that survives a security audit? That is the real challenge.

In this project, I simulated a real-world scenario for a fictional FinTech client, FinCore Systems. The goal was to move away from the "Wild West" of manual permissions and implement a Zero Trust architecture using Microsoft Entra ID and Custom RBAC (Role-Based Access Control).

If you are studying for the AZ-104 or just want to learn how to secure Azure like a pro, follow this step-by-step guide.

🏢 The Business Scenario

Client: FinCore Systems (FinTech)

The Problem: The "Help Desk" team has too much power. They currently have Contributor access, which allows them to delete production databases.

The Requirement: We need a custom security role that allows them to:

• ✅ Restart Virtual Machines (to fix issues).
• ✅ Open Support Tickets (to get help).
• ❌ Strictly Block them from creating new resources or registering expensive service providers (Shadow IT).

🏗️ The Architecture

Instead of assigning permissions to individuals (which is unscalable), we will build a hierarchy:

1. Identity: Users are assigned to an Entra ID Group (grp-fincore-support).
2. Scope: We create a Management Group (mg-fincore-corp) to govern all subscriptions.
3. Permissions: We attach a Custom RBAC Role to the Management Group, which trickles down to everything below it.

🚀 Step-by-Step Implementation

Phase 1: Identity Management (Entra ID)

First, we need to create the "Who." We never assign roles to users directly; we assign them to groups.

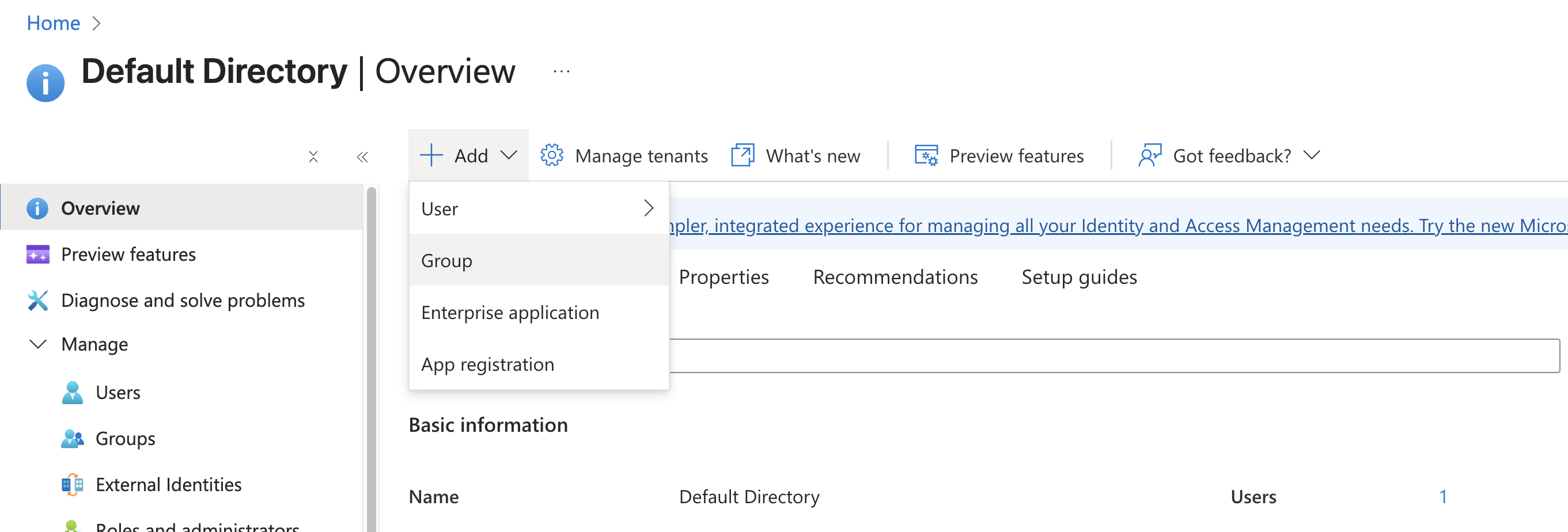

1. Create the Security Group

I started by creating a dedicated security group for the support team. This ensures that if we hire 50 new engineers, we just add them to this group, and they inherit the permissions automatically.

• Group Name: grp-fincore-support
• Type: Security

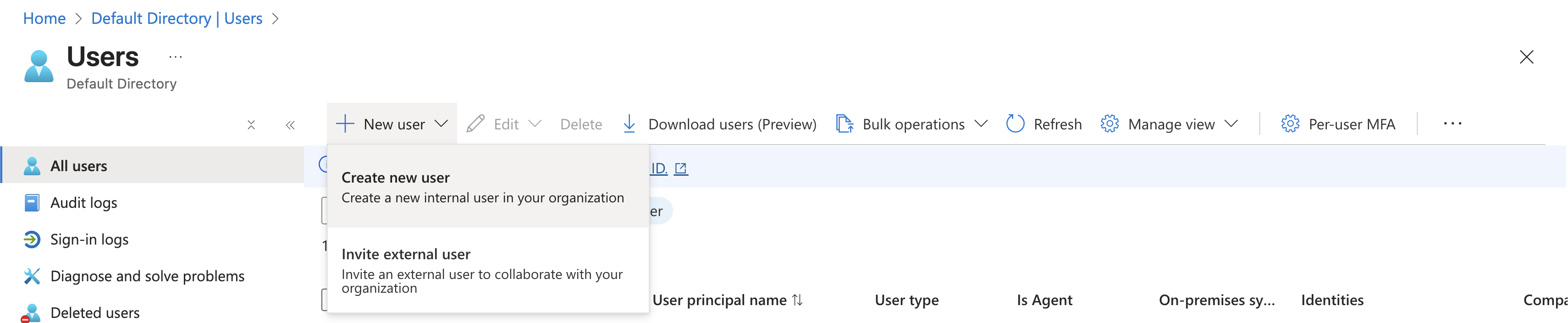

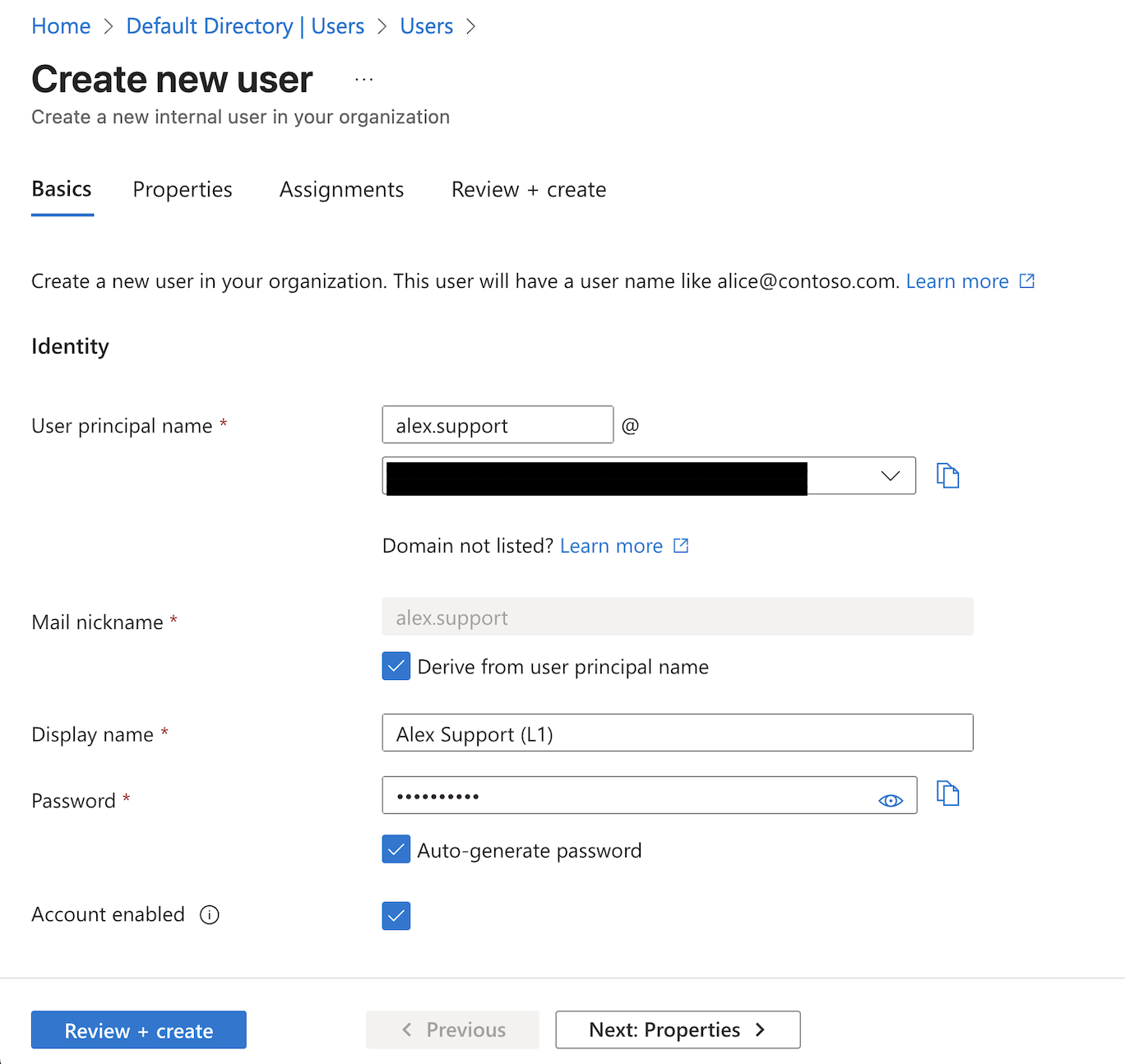

2. Create the Test User

Next, I created a user named Alex Support to act as our "victim" for testing. Crucially, I set the Usage Location to the United States (a common oversight that blocks license assignments later).

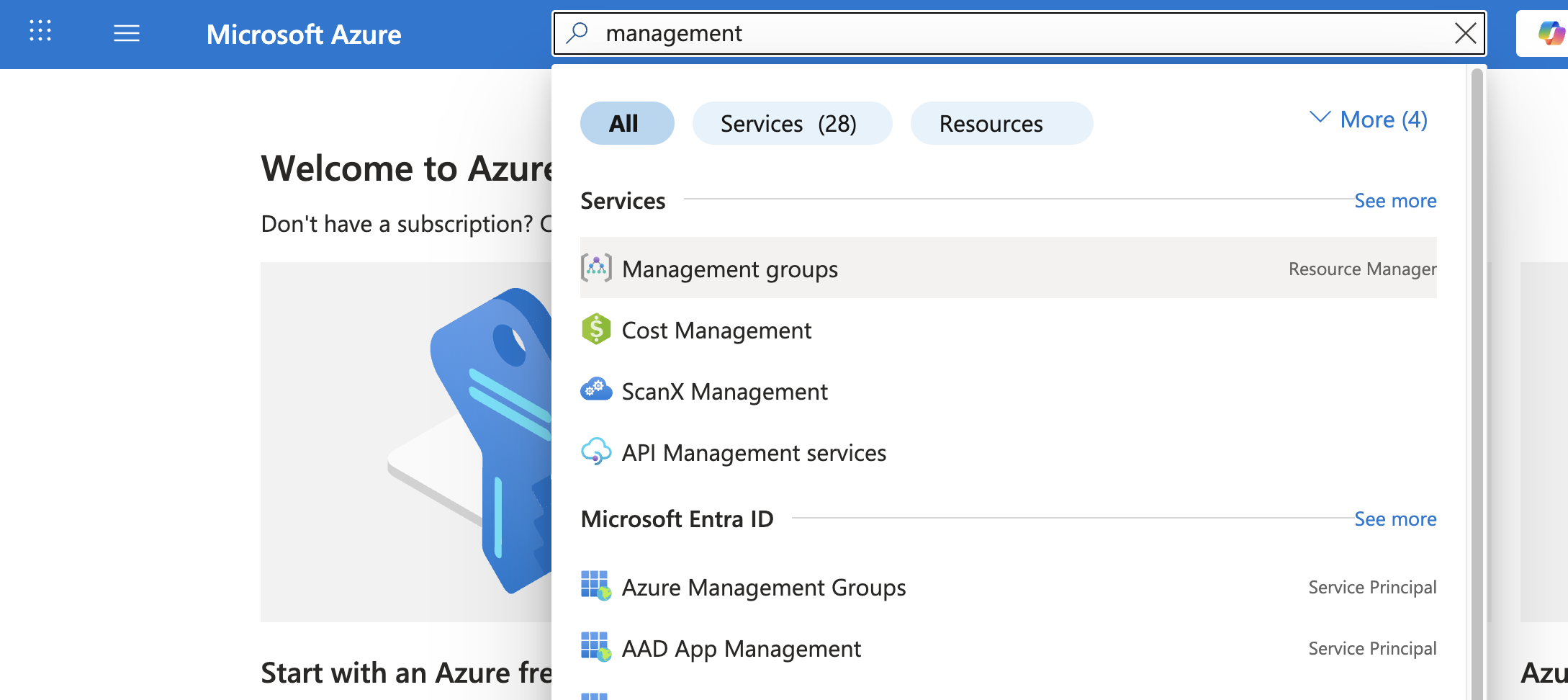

Phase 2: Governance Scope (Management Groups)

To manage policies at scale, we don't want to touch every individual subscription. I created a Management Group to act as a "Root Folder" for the organization.

• ID: mg-fincore-corp
• Display Name: FinCore Corporate Root

Phase 3: The "Least Privilege" Custom Role

This is the core of the project. The built-in "Support Request Contributor" role was too weak (can't restart VMs), but "Virtual Machine Contributor" was too dangerous (can delete VMs).

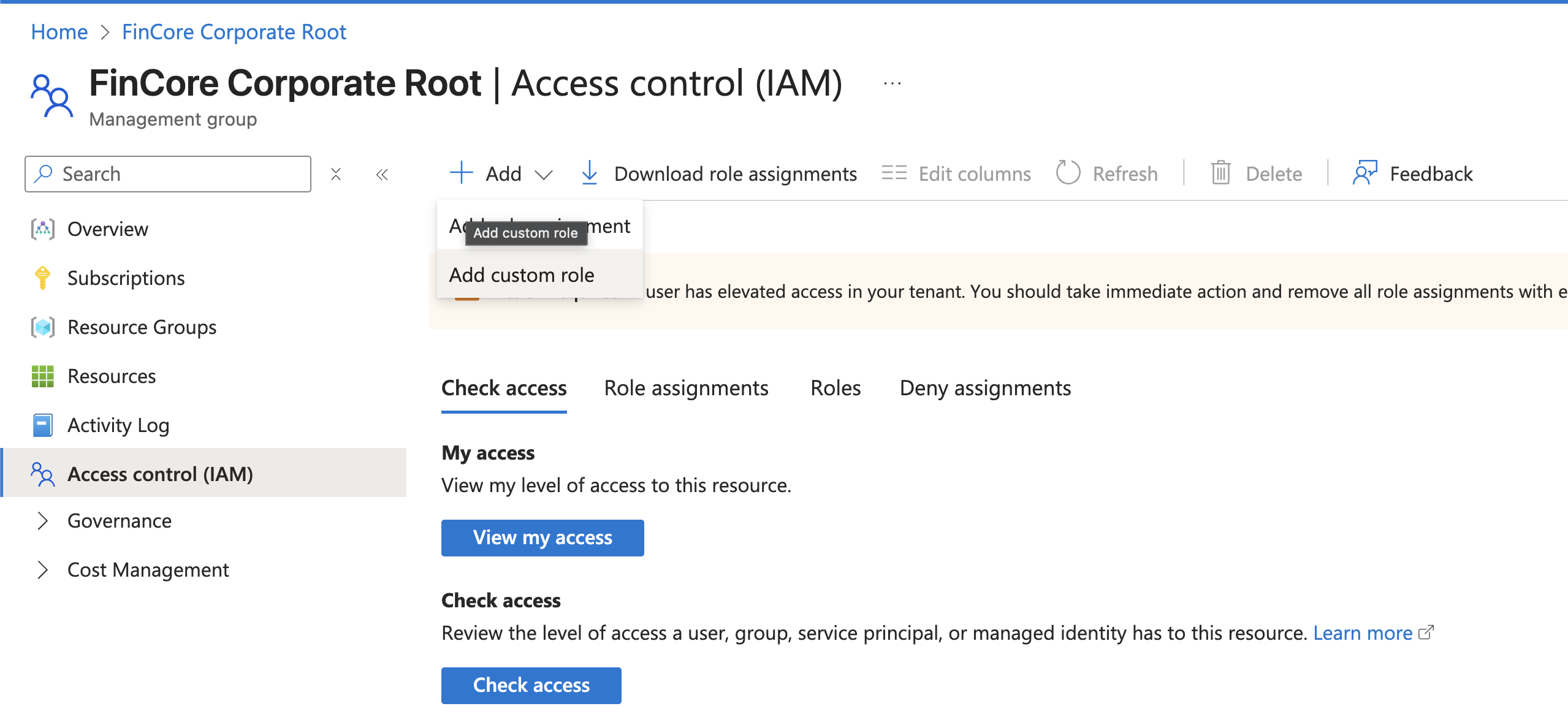

I created a Custom Role by cloning the Support role and modifying it.

1. Adding Permissions (The "Allow" List)

We need to create a role that specifically allows VM restart but denies everything else initially.

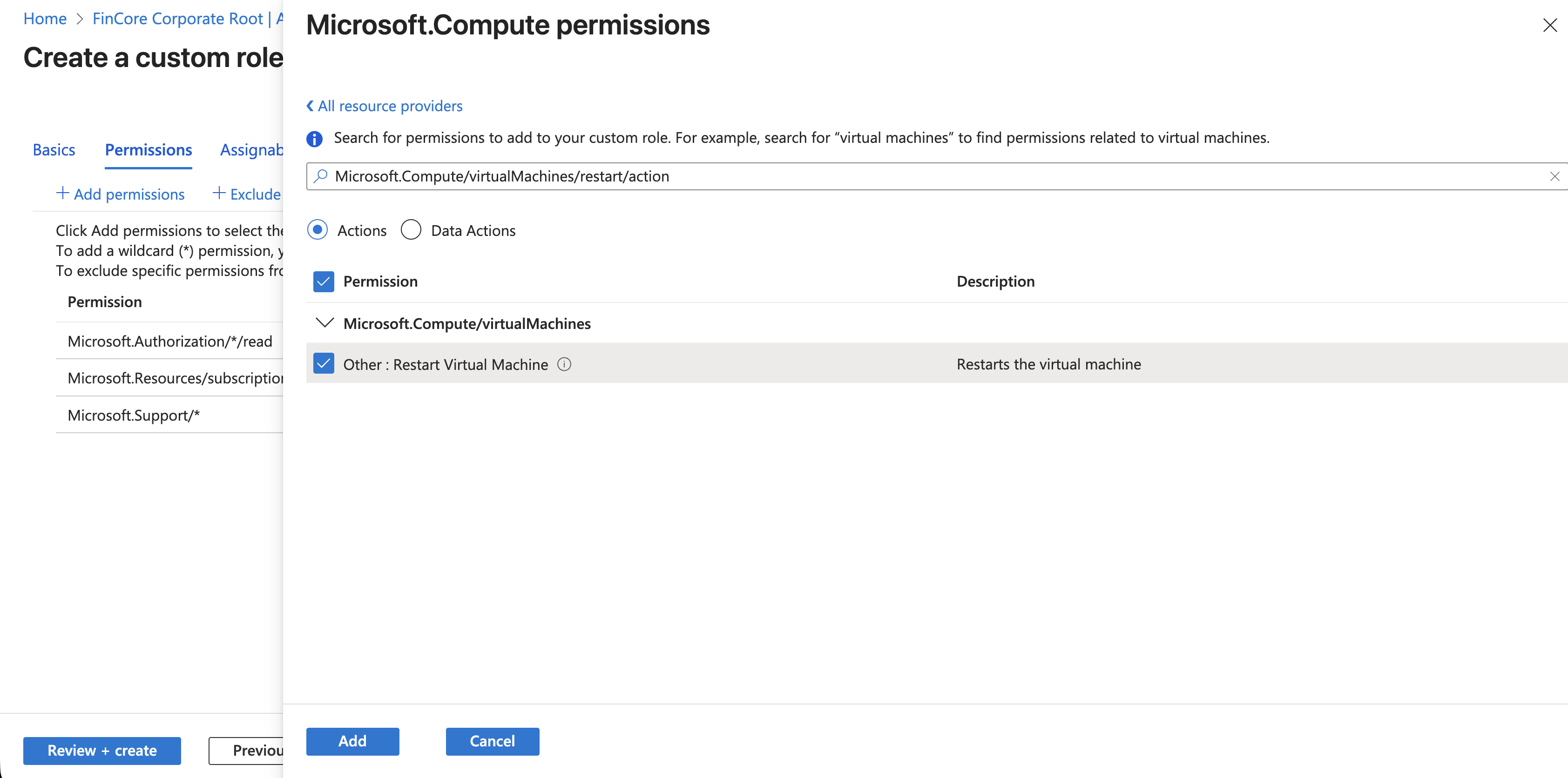

I explicitly added Microsoft.Compute/virtualMachines/restart/action. This gives Alex the power to reboot a frozen server without giving him the power to delete it.

2. Blocking Shadow IT (The "NotAction" List)

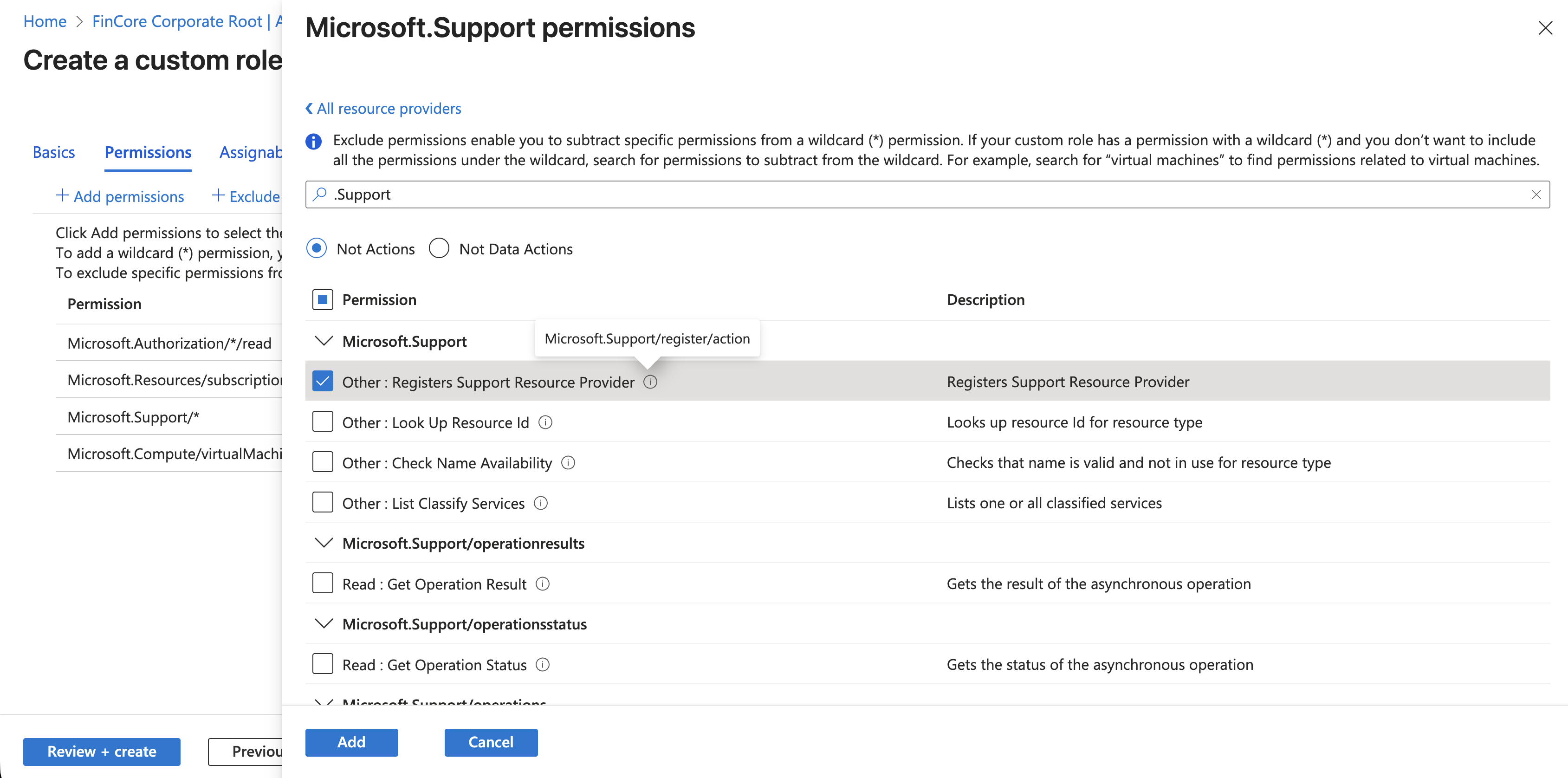

To prevent the Help Desk from accidentally enabling expensive services (like AI or Blockchain), I added Microsoft.Support/register/action to the NotActions list. This effectively "denies" the ability to register new resource providers.

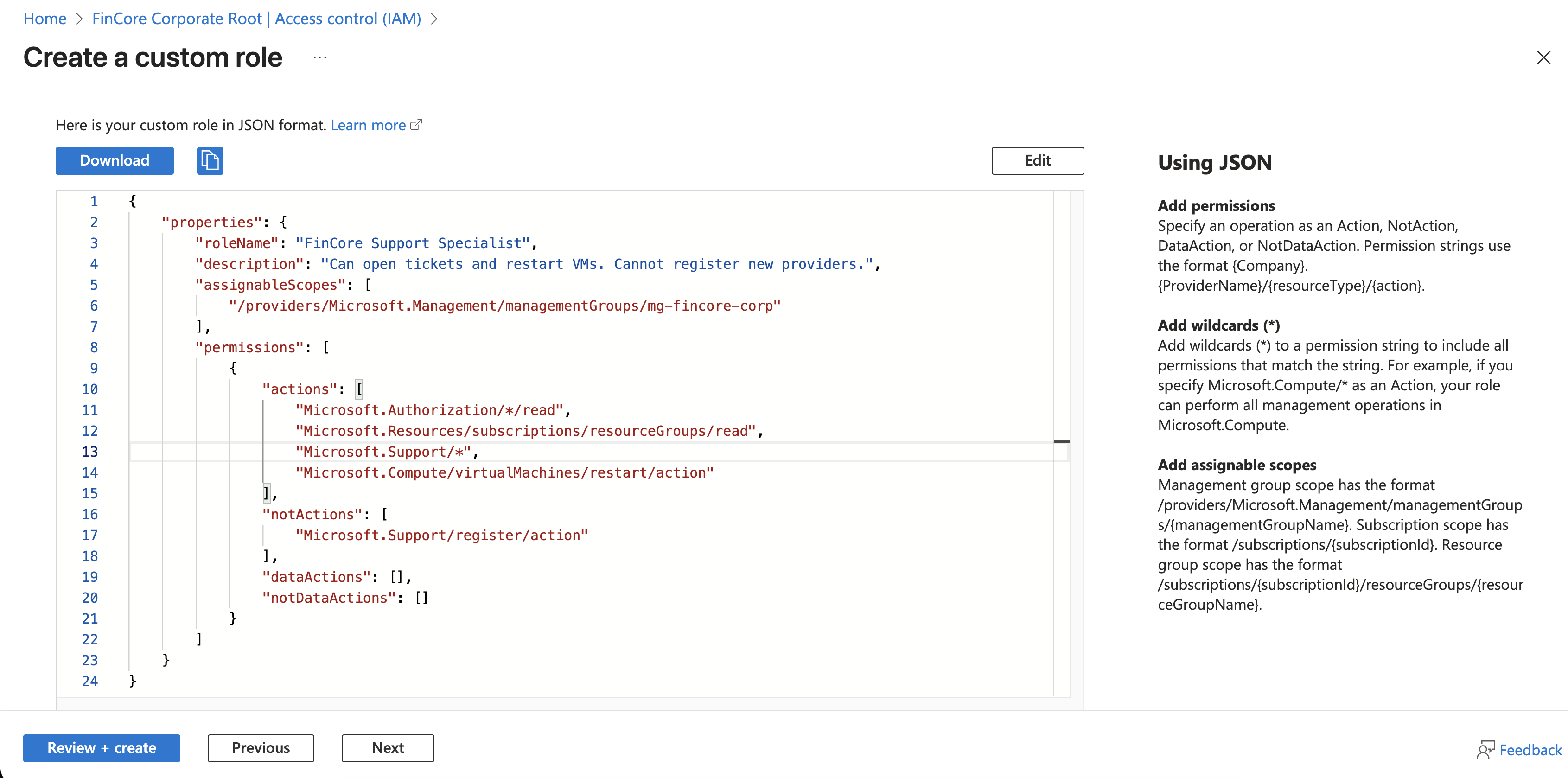

3. The Final Configuration Code

This JSON represents the final "Infrastructure as Code" artifact for the role.

{
  "properties": {
    "roleName": "FinCore Support Specialist",
    "description": "Can open tickets and restart VMs. Cannot register new providers.",
    "assignableScopes": [
      "/providers/Microsoft.Management/managementGroups/mg-fincore-corp"
    ],
    "permissions": [
      {
        "actions": [
          "Microsoft.Authorization/*/read",
          "Microsoft.Resources/subscriptions/resourceGroups/read",
          "Microsoft.Support/*",
          "Microsoft.Compute/virtualMachines/restart/action"
        ],
        "notActions": [
          "Microsoft.Support/register/action"
        ],
        "dataActions": [],
        "notDataActions": []
      }
    ]
  }
}

There are three critical components to this configuration:

1. AssignableScopes: The role is scoped to /mg-fincore-corp. This means it cannot be assigned at the Root Management Group (too broad) or a single Subscription (too narrow). It exists exactly where FinCore operates.
2. Actions: We explicitly grant Microsoft.Support/* for ticketing and the specific restart/action for VMs. This avoids the dangerous write or delete permissions found in standard Contributor roles.
3. NotActions: This acts as a safety filter. Even if another policy or role tries to grant "Support" access, this role explicitly carves out the ability to register new resource providers, preventing accidental cost spikes from "Shadow IT" service headers.

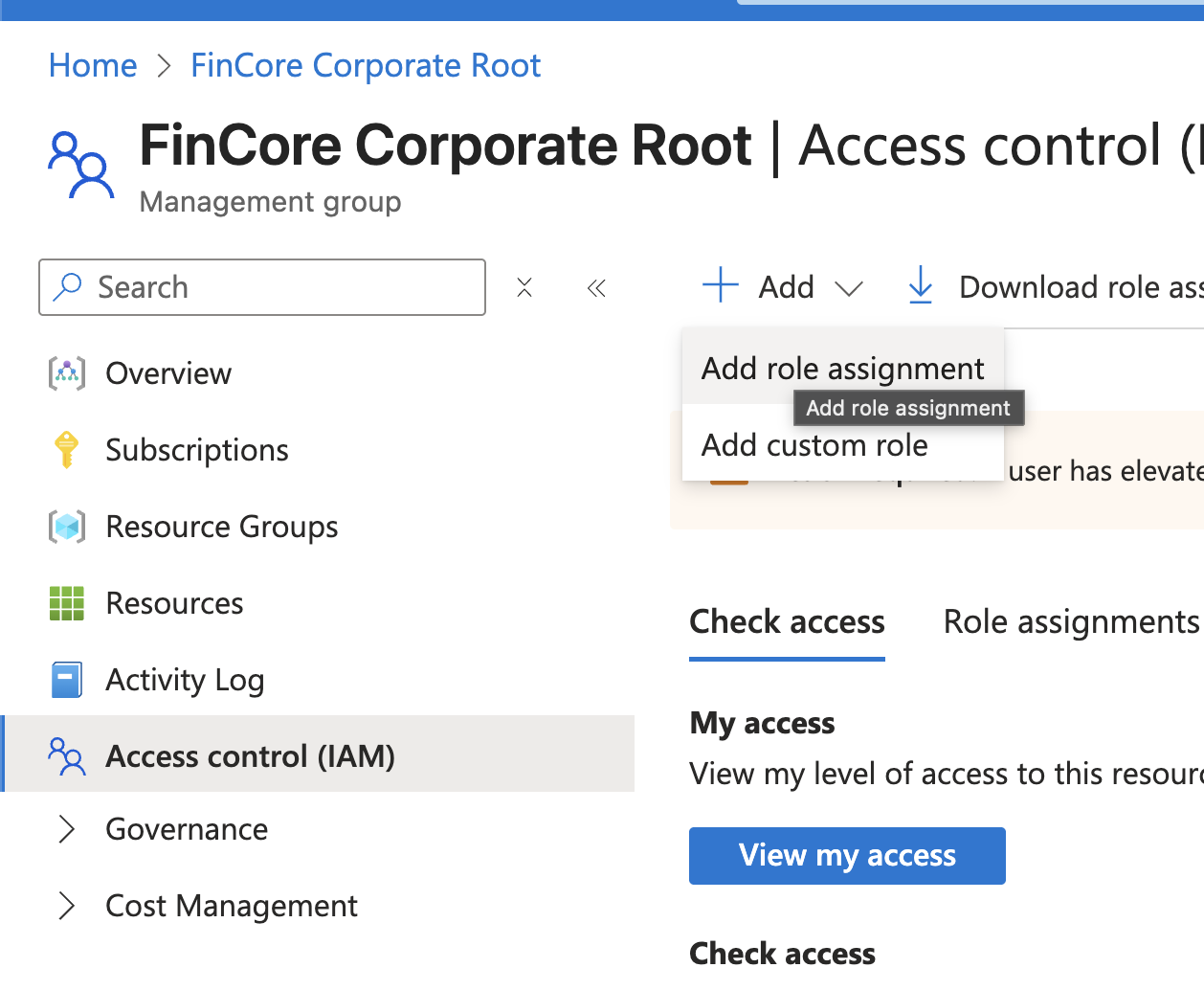

Phase 4: Assigning the Role

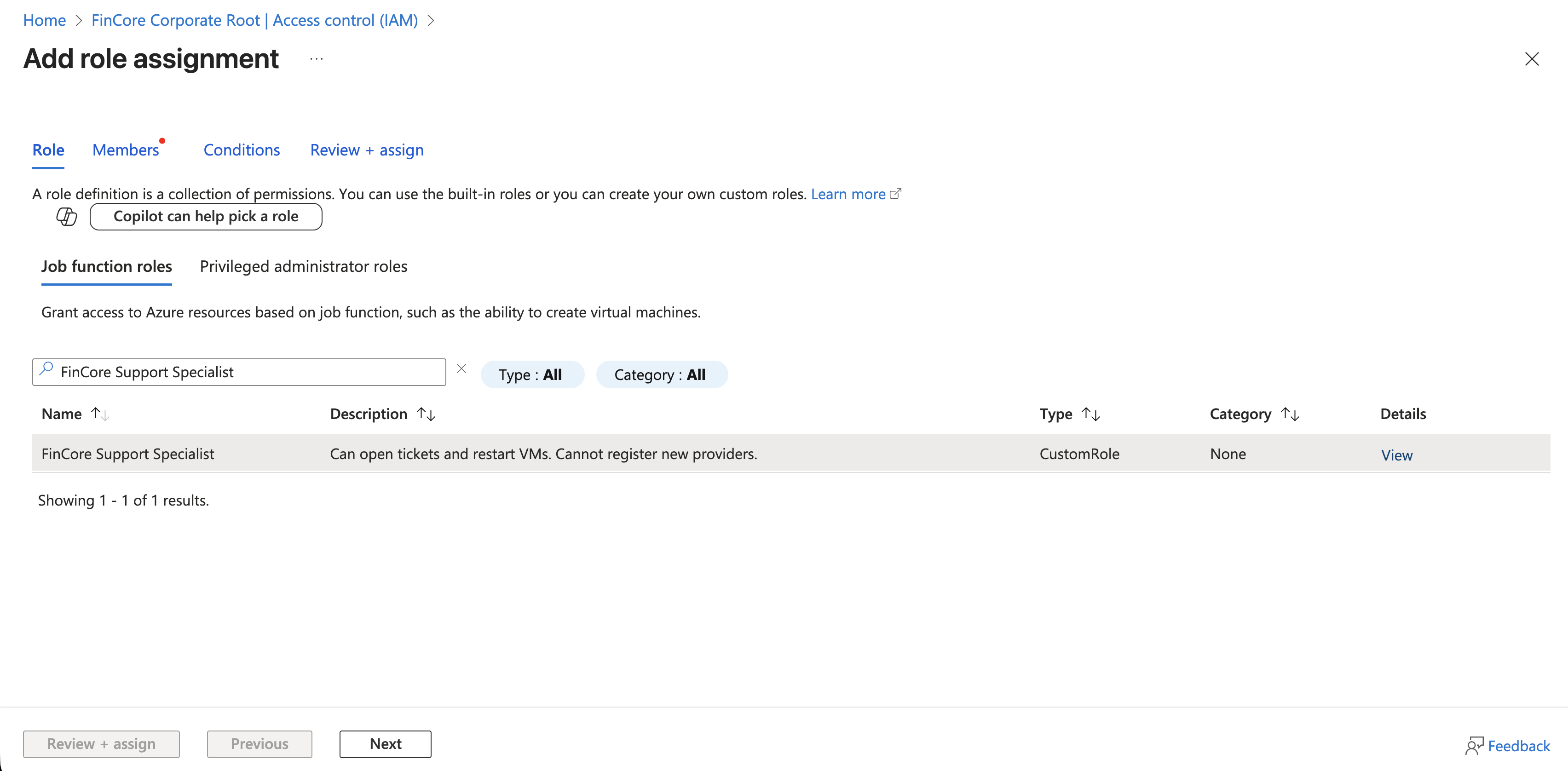

With the role created, we now assign it to our security group at the Management Group scope. This ensures that the permissions trickle down to all subscriptions and resources within our organization.

Phase 5: The "Hacker" Verification

A security architecture is only good if it works. I logged in as Alex (using an Incognito window) to test the boundaries.

Test 1: VM Operations (The "Least Privilege" Test)

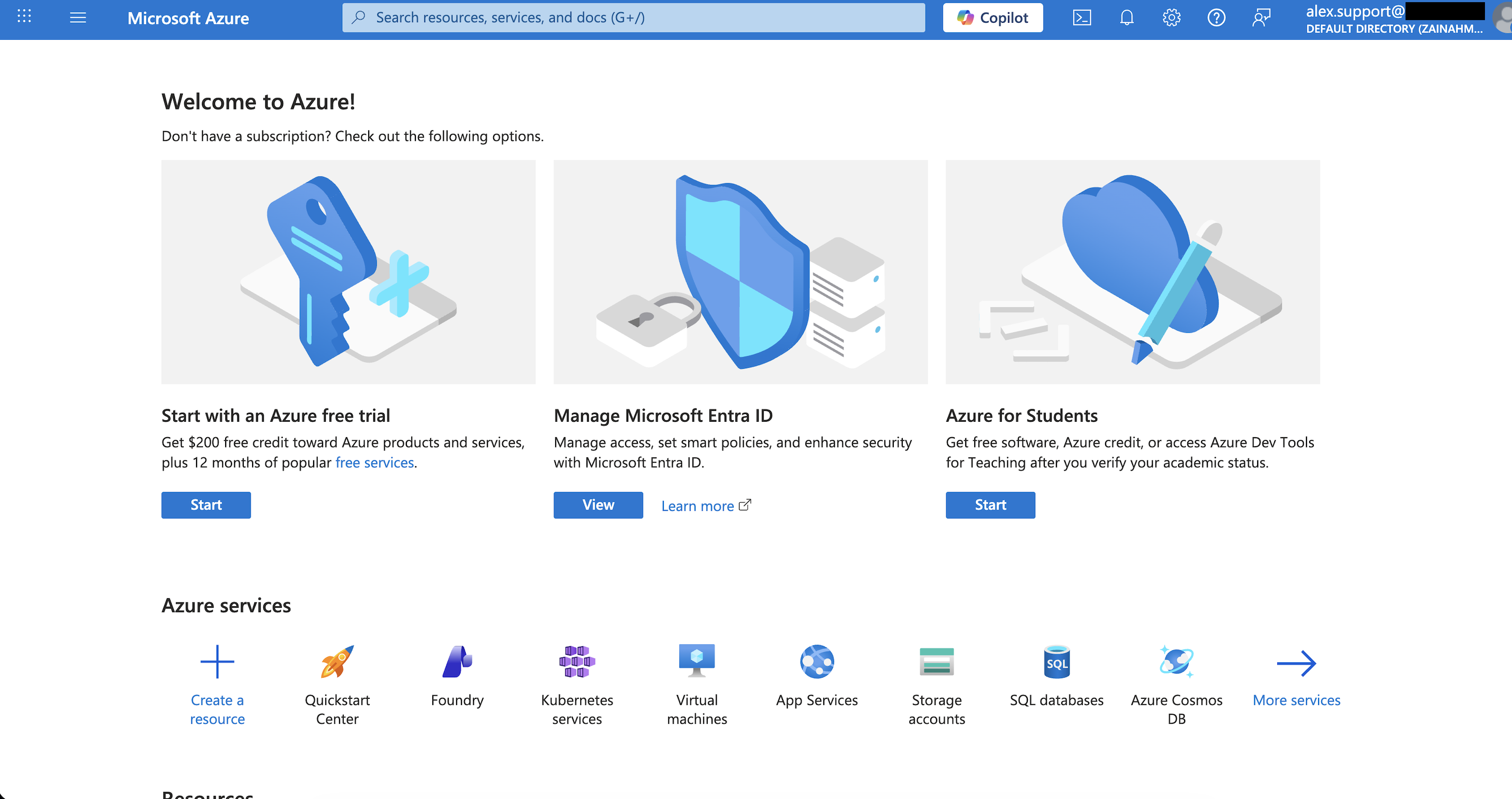

First, I attempted to Restart a Virtual Machine. Since this action was explicitly allowed in our custom role, it should work.

Success! The command executed without issues.

Next, I attempted to Delete the same VM. Since this action was NOT in our custom role (and Delete is a destructive action), it should be blocked.

Blocked! Azure's ARM layer correctly prevented the action.

Test 2: Support Operations

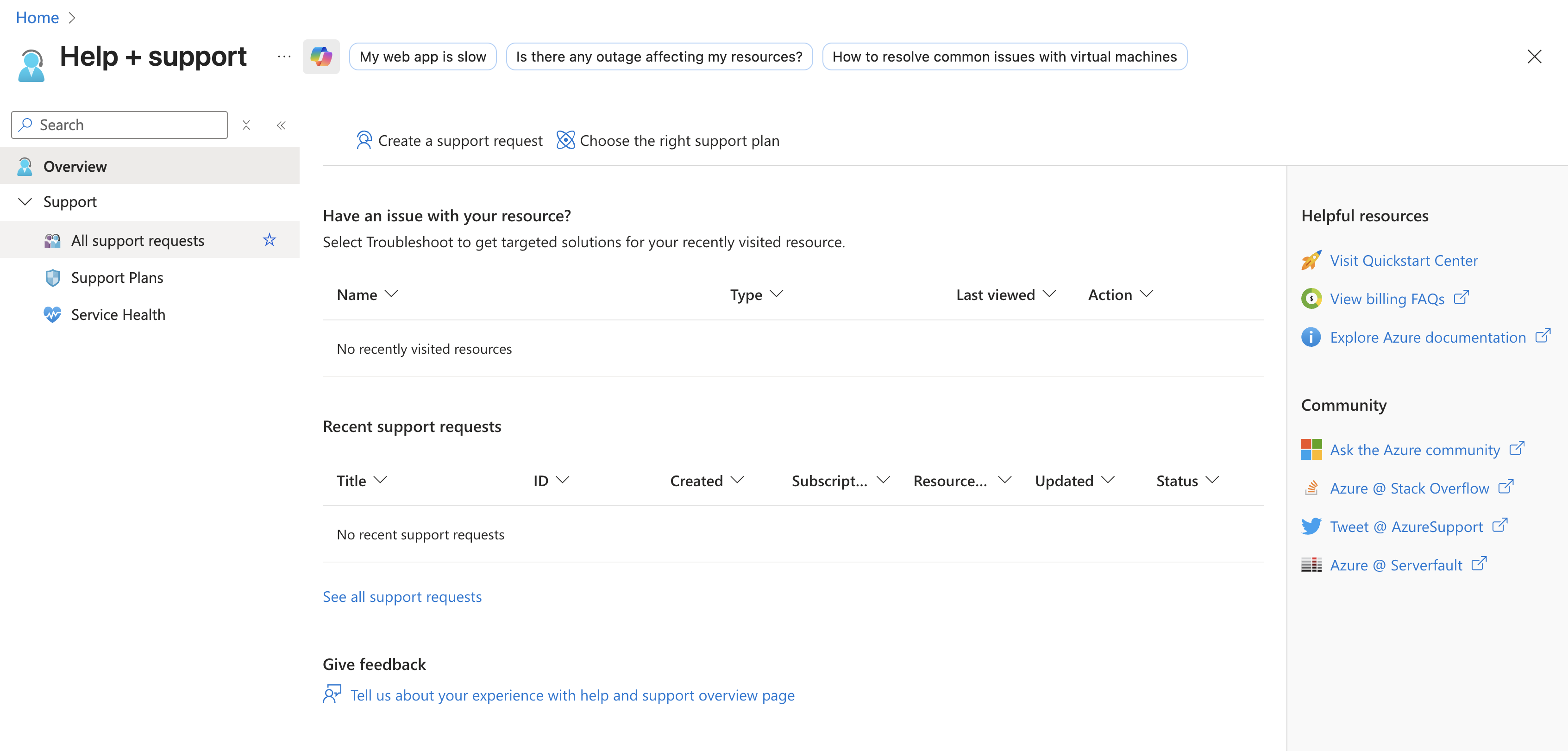

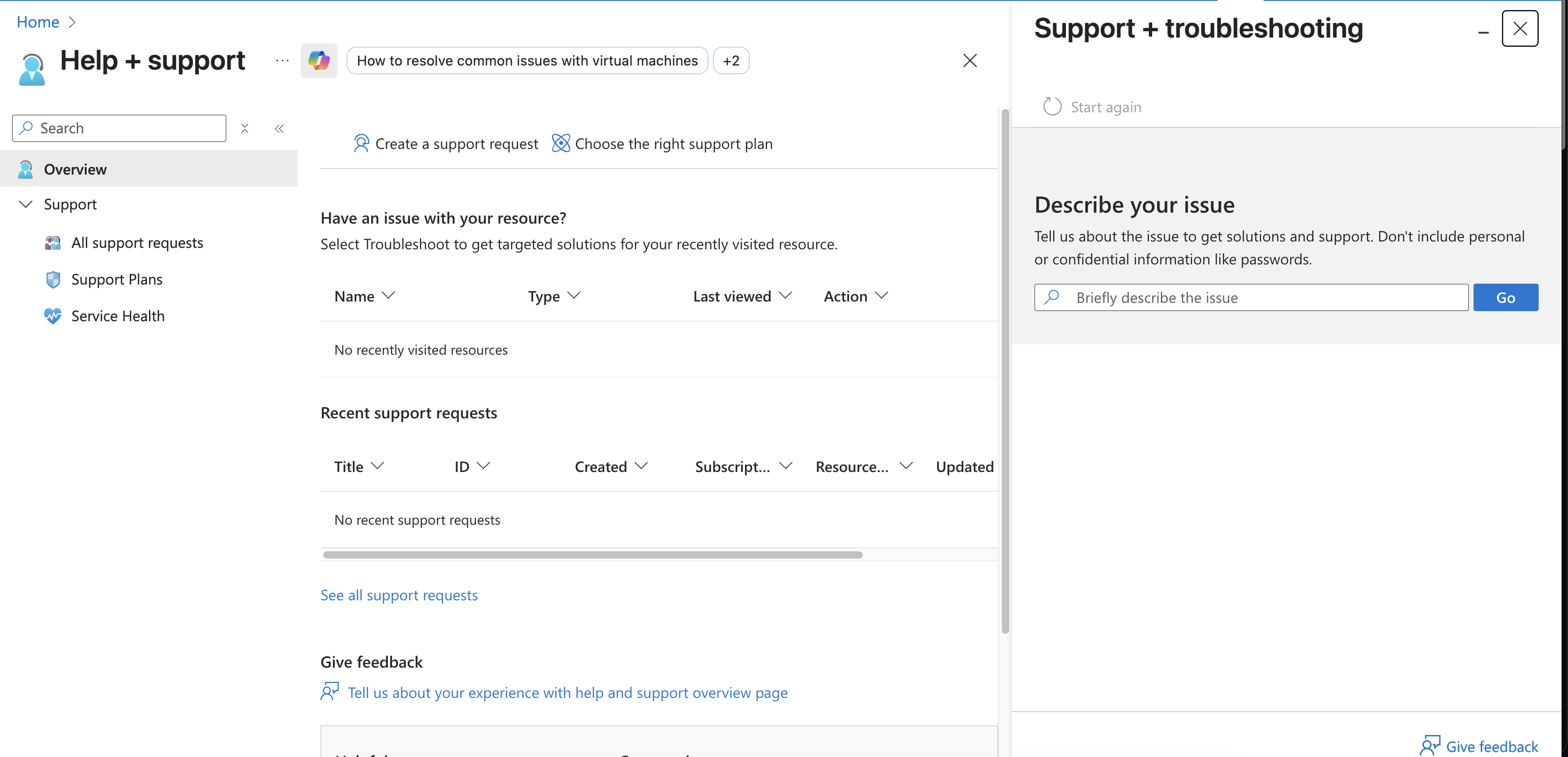

I attempted to open a Support Ticket. The custom role successfully allowed access to the support blade.

Test 3: Governance Scope (Blocked)

I attempted to create a new Resource Group. As expected, the Zero Trust policy kicked in.

Perfect! The guardrails are working exactly as designed.

📊 Key Takeaways

🎯 Conclusion

Building a Zero Trust Identity Architecture is not about making access harderit's about making access smarter. By combining:

• Entra ID Security Groups (for identity)
• Management Groups (for scope)
• Custom RBAC Roles (for least-privilege permissions)

...we created a system that is both secure and scalable. The Help Desk team can do their job effectively, but they cannot accidentally (or maliciously) destroy production resources.

If you're preparing for Azure certifications or building production-grade cloud environments, I hope this walkthrough helps you implement security with confidence.

Next Steps:

• Implement Conditional Access policies for device compliance
• Add Azure Policy to enforce naming conventions
• Deploy Azure AD Privileged Identity Management (PIM) for just-in-time access

Want to see more cloud architecture projects? Follow my blog for deep dives into Azure, AWS, and DevSecOps best practices.
